[en] Designer Compatibility with Data Connectors
[en] The functionality of various data connectors depends on version compatibility with Alteryx Designer. Make sure that the version of the connector you are using is reconcilable with Designer.
[en] Data Connector Version | [en] Compatible Designer Version |
1.0.0 | [en] 2021.4 and Later |
[en] Data Connector Version | [en] Compatible Designer Version |
1.0.0 | [en] 2021.4 and Later |
[en] Data Connector Version | [en] Compatible Designer Version |
[en] 2.1.1 and Later | [en] 2021.3.3 and Later |
2.1.0 | 2021.2.1 - 2021.3.1 |
[en] Data Connector Version | [en] Compatible Designer Version |
[en] 1.0.1 and Later | [en] 2021.3.3 and Later |
1.0.0 | 2021.2.1 - 2021.3.1 |
[en] Data Connector Version | [en] Compatible Designer Version |
[en] 1.1.2 and Later | [en] 2021.3.3 and Later |
1.1.1 | 2021.2.1 - 2021.3.1 |
[en] Data Connector Version | [en] Compatible Designer Version |
1.0.0 | [en] 2021.4 and Later |
[en] Data Connector Version | [en] Compatible Designer Version |
1.1.0 | [en] 2021.2.1 and Later |
[en] Data Connector Version | [en] Compatible Designer Version |
1.0.1 | [en] 2021.3.1 and Later |
[en] Microsoft
[en] Impacted connectors: Sharepoint Files, OneDrive, Power BI, Dataverse
[en] Important information:
[en] No forward or backward compatibility. If you upgrade Designer or the connector, you have to upgrade the other one as well. See compatibility matrix for details.
[en] Redirect URI setup required. The new version requires a new Redirect URI but Azure allows for multiple Redirect URIs, so you can add
https://cef.alteryx.com/designer/oauthcallbackto OAuth 2.0 Redirect URI and use the same custom app across multiple connector versions.
[en] Microsoft Azure Data Lake Store
[en] Azure Data Lake Store 2.4.1 [en] Apr 28, 2023 | 2.4.0 [en] Nov 30, 2022 | 2.3.0 [en] Sep 7, 2022 | 2.1.0 | 2.0.0 | |
[en] Alteryx Designer and Server 2022.3 | ✓ | ✓ | ✓ | ||
[en] 2022.2 (FIPS) | ✓ | ✓ | ✓ | ||
2022.1 | [en] ✓ Patch 2 | [en] ✓ Patch 2 | [en] ✓ Patch 2 | ✓ | ✓ |
2021.4.2 | [en] ✓ Patch 4 | [en] ✓ Patch 4 | [en] ✓ Patch 4 | ✓ | ✓ |
2021.4.1 | ✓ | ✓ | |||
2021.3.6 | ✓ | ✓ | |||
2021.3.5 | ✓ | ✓ | |||
2021.3.4 | ✓ | ✓ | |||
2021.3.3 | ✓ | ✓ | |||
2021.3.2 | |||||
2021.3.1 | ✓ | ✓ | |||
2021.2.3 | ✓ | ✓ | |||
2021.2.2 | ✓ | ✓ | |||
2021.2.1 | ✓ | ✓ |
[en] Microsoft OneDrive
[en] OneDrive 2.2.1 [en] Dec 14, 2022 | 2.2.0 [en] Sep 9, 2022 | 2.1.0 [en] Apr 29, 2022 | 2.0.2 [en] Dec 23, 2022 | 2.0.1 [en] Nov 03, 2021 | 2.0.0 [en] Sep 02, 2021 | |
[en] Alteryx Designer and Server 2022.3 | ✓ | ✓ | ||||
[en] 2022.2 (FIPS) | ✓ | ✓ | ||||
2022.1 | [en] ✓ Patch 2 | [en] ✓ Patch 2 | ✓ | ✓ | ✓ | |
2021.4.2 | [en] ✓ Patch 4 | [en] ✓ Patch 4 | ✓ | ✓ | ✓ | |
2021.4.1 | ✓ | ✓ | ✓ | |||
2021.3.6 | ✓ | ✓ | ✓ | |||
2021.3.5 | ✓ | ✓ | ✓ | |||
2021.3.4 | ✓ | ✓ | ✓ | |||
2021.3.3 | ✓ | ✓ | ||||
2021.3.2 | ||||||
2021.3.1 | ✓ | |||||
2021.2.3 | ✓ | |||||
2021.2.2 | ✓ |
[en] Microsoft Outlook 365
[en] Outlook 365 1.1.0 [en] Sep 5, 2022 | 1.0.0 [en] Feb 2, 2022 | |
[en] Alteryx Designer and Server 2022.3 | ✓ | ✓ |
[en] 2022.2 (FIPS) | ||
2022.1 | ✓ | ✓ |
2021.4.2 | ✓ | ✓ |
2021.4.1 | ✓ | ✓ |
[en] Microsoft Power BI
[en] Power BI 3.3.1 [en] Dec 13, 2022 | 3.3.0 [en] Sep 7, 2022 | 3.2.0 [en] Mar 04, 2022 | 3.1.0 [en] Nov 02, 2021 | 3.0.0 [en] May 20, 2021 | |
[en] Alteryx Designer and Server 2022.3 | ✓ | ✓ | |||
[en] 2022.2 (FIPS) | ✓ | ✓ | |||
2022.1 | [en] ✓ Patch 2 | [en] ✓ Patch 2 | ✓ | ✓ | |
2021.4.2 | [en] ✓ Patch 4 | [en] ✓ Patch 4 | ✓ | ✓ | |
2021.4.1 | ✓ | ✓ | |||
2021.3.6 | ✓ | ✓ | |||
2021.3.5 | ✓ | ✓ | |||
2021.3.4 | ✓ | ✓ | |||
2021.3.3 | ✓ | ||||
2021.3.2 | |||||
2021.3.1 | ✓ |
[en] Microsoft SharePoint
[en] SharePoint 2.4.0 [en] Mar 15, 2023 | 2.3.0 [en] Jan 12, 2023 | 2.2.0 [en] Sep 7, 2022 | 2.1.0 [en] Apr 6, 2022 | 2.0.1 [en] Jan 31, 2022 | 1.1.1 [en] Dec 13, 2021 | 1.1.0 [en] Nov 02, 2021 | 1.0.4 [en] Aug 11, 2021 | |
[en] Alteryx Designer and Server 2022.3 | ✓ | ✓ | ✓ | |||||
[en] 2022.2 (FIPS) | ✓ | ✓ | ✓ | |||||
2022.1 | [en] ✓ Patch 2 | [en] ✓ Patch 2 | [en] ✓ Patch 2 | ✓ | ✓ | ✓ | ✓ | |
2021.4.2 | [en] ✓ Patch 6 | [en] ✓ Patch 6 | [en] ✓ Patch 4 | ✓ | ✓ | ✓ | ✓ | |
2021.4.1 | ✓ | ✓ | ✓ | ✓ | ||||
2021.3.6 | ✓ | ✓ | ✓ | ✓ | ||||
2021.3.5 | ✓ | ✓ | ✓ | |||||
2021.3.4 | ✓ | ✓ | ✓ | ✓ | ||||
2021.3.3 | ✓ | ✓ | ||||||
2021.3.2 | ||||||||
2021.3.1 | ✓ | |||||||
2021.2.3 | ✓ | |||||||
2021.2.2 | ✓ |
[en] Box
[en] Impacted connectors: Box
[en] The functionality of the Box connector is also dependent on the authentication method.
[en] Sign in via Internet Browser method is impacted only if you use SSO via Azure Active Directory. See the compatibility matrix for details.
[en] Sign in via Internet Browser with custom Box application method is also impacted only if you use SSO via Azure Active Directory. Box 2.1.1 requires the new Redirect URI but it doesn’t allow for multiple Redirect URIs, so you have 2 options:
[en] Add

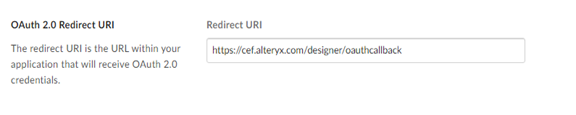

https://cef.alteryx.com/designer/oauthcallbackto OAuth 2.0 Redirect URI and upgrade all users.[en] Create a new app and let the users decide between them based on the connector version they are using.
[en] In the case of Designer 21.3.3 or later, you have to add

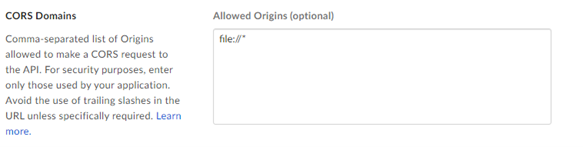

file://*in CORS Domains > Allowed Origins.
[en] JSON Web Token in Designer 21.3.2 or later requires you to allowlist the
file://*inCORS Domains > Allowed Origins regardless of the connector version.
[en] Dropbox
[en] Impacted connectors: Dropbox
[en] If you use SSO via Azure Active Directory, see the compatibility matrix for details.
[en] If you use SSO via Azure Active Directory and a custom application, the compatibility matrix above applies and you need to add
https://cef.alteryx.com/designer/oauthcallbackto the application.
